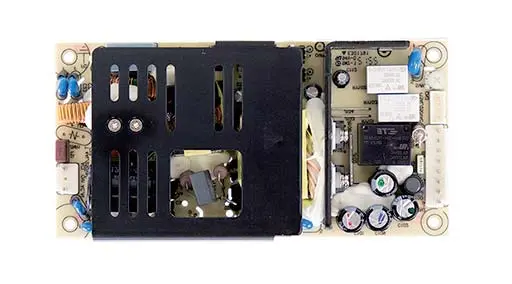

PSC-160B

27.6V 160W AC/DC Security PSU with Battery Charger (UPS Function)
PSC-160 Series · 3.8A rated output.
Built-in Battery Charger for DC-UPS Backup Operation.
Charges Battery and Powers the Load while AC Mains is Present.
Automatic Switchover to Battery when AC Mains Fails.
Universal AC Input 90-264 VAC.
Efficiency up to 90%.
Cooling by Free Air Convection.
Alarm Signal for AC OK and Battery Low (Relay Contact)
Working Temperature -20 to +70℃.
PCB type (open frame); enclosed -C version (with chassis & cover) available.
UL / IEC / EN 62368-1, EAC TP TC 004 Approved.
3 Year Product Warranty.
Also available with chassis and cover.
Built-in Battery Charger for DC-UPS Backup Operation.
Charges Battery and Powers the Load while AC Mains is Present.
Automatic Switchover to Battery when AC Mains Fails.
Universal AC Input 90-264 VAC.
Efficiency up to 90%.
Cooling by Free Air Convection.
Alarm Signal for AC OK and Battery Low (Relay Contact)
Working Temperature -20 to +70℃.
PCB type (open frame); enclosed -C version (with chassis & cover) available.
UL / IEC / EN 62368-1, EAC TP TC 004 Approved.
3 Year Product Warranty.
Also available with chassis and cover.
(0.18MB)
Protections
Short CircuitOver VoltageOverloadReverse PolarityBattery Low
Approvals & Compliance
IEC/EN/UL 62368-1EAC
